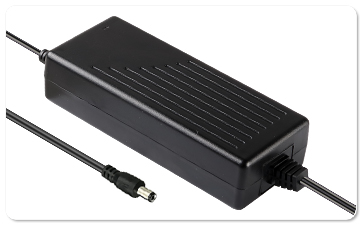

19V 6.3A AC DC Adapter 19V 6.3A Switching Power Adapter


19V 6.3A Switching Power Adapter 19V 6.3A AC DC Power Adapter

19V6.3A Adapter high quality,high reliablity;19V 6.3A 120w For AC/DC Adapter 19V6.3A Output characteristics:high precision,ripple,low noise

power19V 6.3A Switching Power Adapter 19V 6.3A AC DC Power Adapter Parameter

● Model :ABT063190
● Output voltage :19V
● Output current : 6.3A
● Input voitage range :100-240V AC
● Input voltage frequency :50-60Hz
● Variation Frequency :47~63Hz
● Size : YBW 171*71*40mm
● Safety Certification :KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.
power19V 6.3A Switching Power Adapter 19V 6.3A AC DC Power Adapter Product Reliability
● Ielectric Strength(Hi-pot) :Primary to Secondary: 3000Vac 10mA 60S
● Leakage Current :0.25mA max. at 240Vac / 50Hz input
● Protection :Over-voltage Protection, Over-current Protection,Short Circuit Protection
● ESD :Contact discharge performance is 4KV;Air discharge performance is 8KV
● Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours.
● Insulation Resistance :100MΩ min. @ primary to secondary add a 500Vdc test voltage
● EMC : EN55014/24/32/35 & EN61000

● Wide input voltage range, in line with global standards.

● Dropping packed :1 Corner 3 edges 6surfaces 100cm
● MTBF: According to MIL-HDBK-217F Standard, Full Load, 25 ℃, More Than 50000 Hours

● Vibration :10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour

       for each of the perpendicular axes X, Y, Z

power19V 6.3A AC DC Power Adapter Features and Advantages
19V 6.3A AC/DC ADAPTER,Ultra-safe Design, In Line With Safety Certification Of Different Countries
19V 6.3A Switching Power Adapter,Highly Efficient Circuit Design, Stable Performance, Low Temperature
19V 6.3A Switching Power Adapter,Well Designed, Lightweight Beautiful
