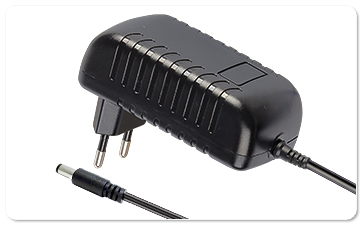

19V 2A AC DC Adapter 19V 2000MA Switching Adapter


19V 2A AC DC Adapter 19V 2000MA Switching Adapter
19V 2A AC DC Adapter 19V 2000MA Switching Adapter
"19V2A Adapter,ROHS compatible UL,FCC,BDMI,CB,CE,C-TICK,3C.high quality,competitive price,high reliablity.OEM/ODM order is welcomed,welcome your enquiry 19V 2A Switching Adapter for ABT

5V500MA19V 2A AC DC Adapter 19V 2000MA Switching Adapter Parameter


● Model :ABT020190
● Output voltage :19V
● Output current :2A
● Input voitage range :100-240V AC
● Input voltage frequency :50-60Hz
● Variation Frequency :47~63Hz
● Size :① 56(L)*37.5(W)*24.5(H)mm ② 56(L)*37.5(W)*24.5(H)mm ③ 58.5(L)*25(W)*46.8mm
● Standby power dissipation :meet CoC V5,DoE Ⅵ
● meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements

5V500MA19V 2A AC DC Adapter 19V 2000MA Switching Adapter Product Reliability

● Ielectric Strength(Hi-pot) :Primary to Secondary: 3000Vac 10mA 60S
● Leakage Current :0.25mA max. at 240Vac / 50Hz input
● Protection :Over-voltage Protection, Over-current Protection,Short Circuit Protection
● ESD :Contact discharge performance is 4KV;Air discharge performance is 8KV
● Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours.
● Insulation Resistance :100MΩ min. @ primary to secondary add a 500Vdc test voltage
● EMI : FCC CLASS B / EN55022 CLASS B; CONDUCTED & RADIATED MEETED

● Wide input voltage range, in line with global standards.

● Dropping packed :1 Corner 3 edges 6surfaces 100cm
● MTBF: According to MIL-HDBK-217F Standard, Full Load, 25 ℃, More Than 50000 Hours

● Vibration :10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour

       for each of the perpendicular axes X, Y, Z

5V500MA19V 2A AC DC Adapter 19V 2000MA Switching Adapter Features and Advantages

12V 3A 3000MA AC/DC ADAPTER,Ultra-safe Design, In Line With Safety Certification Of Different Countries
19V 2A AC DC Adapter,Highly Efficient Circuit Design, Stable Performance, Low Temperature
19V 2A AC DC Adapter,Well Designed, Lightweight Beautiful
5V500MA19V 2A AC DC Adapter 19V 2000MA Switching Adapter AC Plug
19V 2A AC DC Adapter
19V 2000MA Switching Adapter
19V 2000MA Switching Adapter
19V 2000MA Switching Adapter
19V 2A AC DC Adapter
US Plug
EU Plug
CN Plug
AU Plug
UK Plug
