9V0.5A AC/DC Adapter ABT005090-9V 0.5A Adapter


9V 0.5A AC/DC ADAPTER 9V 500MA AC/DC ADAPTER
9V 0.5A AC/DC ADAPTER 9V 500MA AC/DC ADAPTER
9V0.5A AC/DC Adapter With UL,FCC,BSMI,CB,CE,LVD,C-TICK,3C, adapter,switching power g power adapter from ABT Electronic Co.,Ltd is a professional manufacture of switching mode power suppliers, 9V0.5A power supply Adapter

power9V 0.5A AC/DC ADAPTER 9V 500MA AC/DC ADAPTER Parameter

● Model :ABT005090
● Output voltage :9V
● Output current :500MA
● Input voitage range :100-240V AC
● Input voltage frequency :50-60Hz
● Variation Frequency :47~63Hz
● Size :MMW 62*39*26mm
● Standby power dissipation :meet CoC V5,DoE Ⅵ
● Safety Certification :KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.
power9V 0.5A AC/DC ADAPTER 9V 500MA AC/DC ADAPTER Product Reliability
● Ielectric Strength(Hi-pot) :Primary to Secondary: 3000Vac 10mA 60S
● Leakage Current :0.25mA max. at 240Vac / 50Hz input
● Protection :Over-voltage Protection, Over-current Protection,Short Circuit Protection
● ESD :Contact discharge performance is 4KV;Air discharge performance is 8KV
● Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours.
● Insulation Resistance :100MΩ min. @ primary to secondary add a 500Vdc test voltage
● EMC : EN55014/24/32/35 & EN61000

● Wide input voltage range, in line with global standards.

● Dropping packed :1 Corner 3 edges 6surfaces 100cm
● MTBF: According to MIL-HDBK-217F Standard, Full Load, 25 ℃, More Than 50000 Hours

● Vibration :10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour

       for each of the perpendicular axes X, Y, Z

power9V 0.5A AC/DC ADAPTER 9V 500MA AC/DC ADAPTER Features and Advantages
9V 0.5A 500MA AC/DC ADAPTER,Ultra-safe Design, In Line With Safety Certification Of Different Countries
9V 0.5A AC/DC ADAPTER,Highly Efficient Circuit Design, Stable Performance, Low Temperature
9V 0.5A AC/DC ADAPTER,Well Designed, Lightweight Beautiful

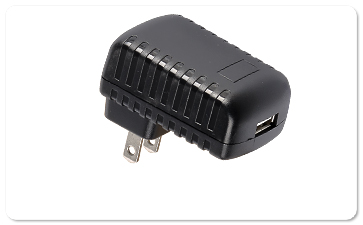

powerMore shapes



power adapter power adapter
Shell 2
Shell 2
power adapter power adapter
Shell 2
Shell 2

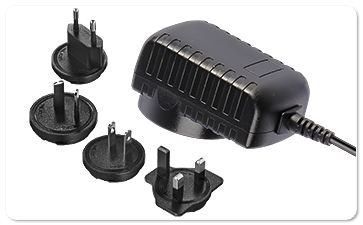

Exchangeable AC Plug Interchangeable AC plug
Exchangeable AC Plug
Interchangeable AC plug



5V400MAMore similar adapter
