MINI-ITX Power Supply 19V input 180W DC/ATX Power Supply

dc/dc atx Power Supply

DC ATX Switch PSU

100% Silent.The MINI-ITX Power Supply is a 100% silent dc to dc solution. MINI-ITX Power Supply
19V input 180W DC/ATX Power Supply,No fans, no noise, just power for your silent and small PC

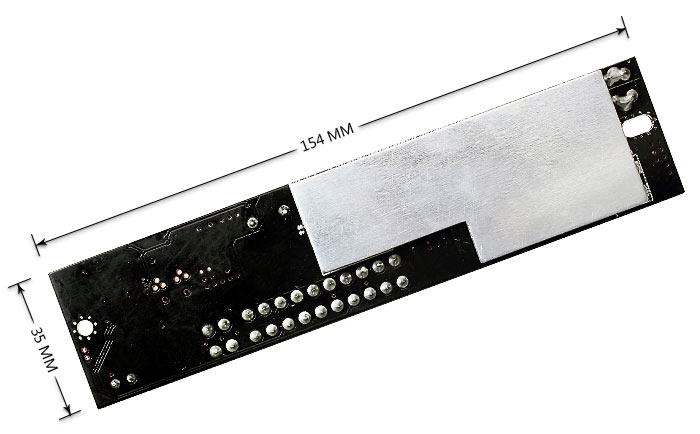

开关电源MINI-ITX Power Supply 19V input 180W DC/ATX Power Supply Size:
dc/atx power
开关电源MINI-ITX Power Supply 19V input 180W DC/ATX Power Supply Output interface :
20+4PIN 4pin SATA p4 m4pin
20+4 Pin Connector
4 Pin Molex Connector
SATA Connector
4 Pin 12V Connector
4 Pin Floppy Connector
开关电源Output parameter :



Model:LD180W19V
DC INPUT DC 12V
DC OUTPUT +12V +5V +3.3V -12V +5VSB

180W

MAX
COMINEO
WATTS
7A 8A 10A 0.15A 2.0A
POWER : 180W



开关电源Electrical Specification :



Model:LD180W19V
Rated power:180W
Input voltage range:19V DC (17VDC—24VDC)
Input surging current:19.0Vmax@19VDC
Work efficiency:≥90%
Working temperature/humidity:5℃ to 50℃ /45%-75%℃
Storage temperature/humidity:-40℃ to +70℃/10%-90%
Fanless DC-DC solution for 100% mute operating.
Compact design, special for mini-itx and 1U case.


开关电源aracteristics and advantages :



Strictly design and manufacture according to MINI-ITX power supply design specification.
Double sided PCB and SMT process are adopted.
High efficiency, small volume, good heat dissipation.
Multiple protection: over current, over voltage, short circuit multiple protection function.

Protection
(for+3.3V,+12V,+5.00V&+5.00VSB power output)
OCP:output shut down when output current reaches the peak point.
Short-circuit protection:output shut down when short-circuit.


开关电源MINI-ITX Power Supply 19V input 180W DC/ATX Power Supply Application :



MINI computer,one computer,POS machine,digital set top box,ITX case,network server,advertisement machine,bank terminal.etc.
