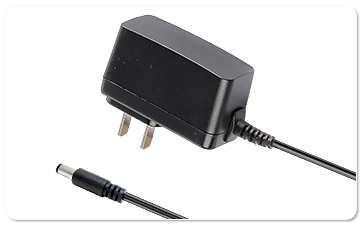

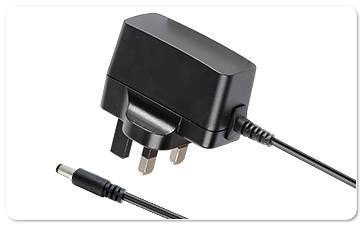

5V/0.85A ac dc power adapter





5V0.85A ac dc power adapter 5V0.85A ac dc power adapter

5V0.85A ac dc power adapter 5V0.85A ac dc power adapter

5V0.85A ac dc power adapter 5V0.85A ac dc power adapter




AC-DC Adapter 5V/0.85A AC-DC Adapter Dc Power Jack: (On request)
5V0.85A AC-DC Adapter Dc Power Jack
5V0.85A AC-DC Adapter Dc Power Jack
5V0.85A AC-DC Adapter Dc Power Jack
5V0.85A AC-DC Adapter Dc Power Jack
AC-DC Adapter 5V/0.85A AC-DC Adapter Product Description :



[Model]:ABT085050
[Brand]:ABT  (Accept OEM ODM Order)
[power]:4.25W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 5V/0.85A
[Color]:White / Black(On request)
[Safety Certification]:UL,CEC,FCC,BSMI,CB,CE,C-TICK,KE,3C

AC-DC Adapter 5V/0.85A AC-DC Adapter Product Parameters :



[5V/0.85A AC-DC Adapter Size]:D115*W62.5*H34.5mm
[5V/0.85A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
                                            Short Circuit Protection.
[5V/0.85A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
                                            40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
                                            Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
                                            MTBF: According to MIL-HDBK-217F Standard, Full Load,
                                           25 ℃, More Than 50000 Hours.

AC-DC Adapter 5V/0.85A AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
5V/0.85A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 5V/0.85A AC-DC Adapter Application:



5V 0.85A AC/DC Adaptor for digital photo frame
100-240V AC to DC 5V 0.85A CCTV Cam Power adapter
LED Lights 5V/0.85A AC-DC Adapter Power Supply
HDD Enclosure 5V/0.85A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
5V 0.85A DC/AC CCTV Camera Power Supply Switch Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 5V/0.85A AC-DC Adapter Power Supply
5V/0.85A power adapter wall mount type with UL,CEC,FCC,BSMI,CB,CE,LVD,TUV,C-TICK,3C

AC-DC Adapter More shapes



AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Exchangeable AC Plug
Desktop power adapter
