    Home >> N products >> AC-DC Power Adapter >>19V2A AC-DC Power Adapter

24Watt Energy Star V Compliant 19V2A AC-DC Power Adapter

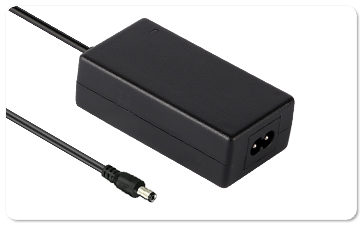

19V2A desktop power adapter 19V2A desktop power adapter
19V2A desktop power adapter
19V2A Wall-Mount Power adapter 19V2A Wall-Mount Power adapter
19V2A Wall-Mount Power adapter



AC-DC Adapter 19V2A AC-DC Adapter Ac plug insert: (On request)
19V2A AC-DC Adapter Ac plug insert
19V2A AC-DC Adapter Ac plug insert
19V2A AC-DC Adapter Ac plug insert
19V2A AC-DC Adapter Ac plug insert
19V2A AC-DC Adapter Ac plug insert
Australia plug insert
UK Plug insert
Europe plug insert
America plug insert
China Insert Plug



AC-DC Adapter 19V2A AC-DC Adapter Dc Power Jack: (On request)
19V2A AC-DC Adapter Dc Power Jack
19V2A AC-DC Adapter Dc Power Jack
19V2A AC-DC Adapter Dc Power Jack
19V2A AC-DC Adapter Dc Power Jack
AC-DC Adapter 19V2A AC-DC Adapter Product Description :



[Model]:CP1920
[Brand]:ABT  (Accept OEM ODM Order)
[power]:38W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 19V/2A
[Color]:White / Black(On request)
[Safety Certification]:UL,CEC,FCC,BSMI,CB,CE,C-TICK,KE,3C

AC-DC Adapter 19V2A AC-DC Adapter Product Parameters :



[19V2A AC-DC Adapter Size]:D115*W62.5*H34.5mm
[19V2A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
                                            Short Circuit Protection.
[19V2A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
                                            40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
                                            Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
                                            MTBF: According to MIL-HDBK-217F Standard, Full Load,
                                           25 ℃, More Than 50000 Hours.

AC-DC Adapter 19V2A AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
19V2A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 19V2A AC-DC Adapter Application:



19V2A AC/DC Adaptor for digital photo frame
100-240V AC to DC 19V2A CCTV Cam Power adapter
LED Lights 19V2A AC-DC Adapter Power Supply
HDD Enclosure 19V2A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
19V2A TV / LCD Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 19V2A AC-DC Adapter Power Supply
Laptop / Notebook 19V2A AC / DC Adapter
