● Home >> Products >> PC Power

Product Picture Product Parameters Product Introduction Optional wire Components Product Comments Other Similar Products

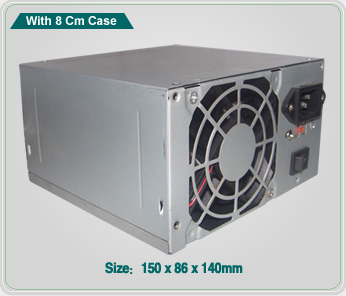

Case 1: With 8 CM Case Case 2: With 12CM Case(Plating)

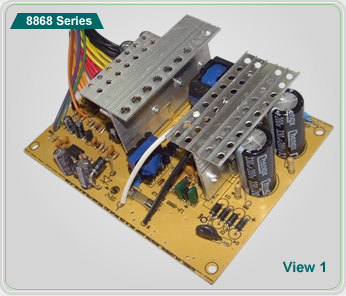

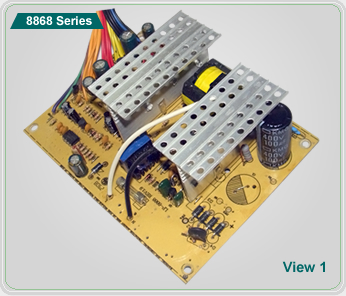

View 1: With 8CM Case View 2: With 8CM Case

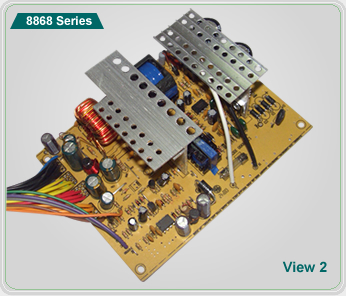

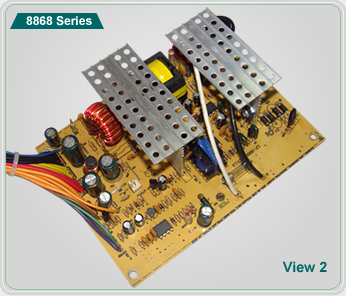

View 1: With 12CM Case View 2: With 12CM Case

Model:8868 Series
AC INPUT 115V/230V 10A/6A 50-60Hz
DC OUTPUT +12V +5V +3.3V -12V +5VSB
200W MAX
9A 8A 5A 0.5A 1.0A

The Total Wattage Output :200W
Efficiency:> 71%
PFC (Power Factor Correction): (Bbased On Customer Requirements To Provide)
P.G. Signal :100-500 MS
Color: Metallic Silver (Which Can Be Provided In Accordance With Customer Requirements)
Size: Refer To Figure
Wire: Standard (Which Can Be Provided In Accordance With Customer Requirements)
Standard Exposed Length For Wire: .350 mm (Can Be Provided In Accordance With Customer Requirements)
Operating Temperature: 5 ℃ to 50 ℃
Storage Temperature: -40 ℃ to 70 ℃
Working Humidity: 20% to 85%, Non-Condensing
Storage Humidity: 10% to 95%, Non-Condensing
Over Power Protection, Over-Voltage Protection, Under-Voltage Protection, Short Circuit Protection Etc.
High-Performance, High Reliability, Professional Design
Ample Current To Ensure Adequate Supply Real-Time


4-Pin 12V
4-Pin Molex
4-Pin Floppy
Temperature Control Of Small Plate

Optional Blue Case Optional Black Case
Optional Gold Case Optional All-Aluminum
