    Home >> products >> AC-DC Power Adapter >>6V0.5A AC-DC Power Adapter

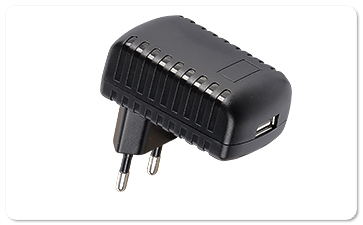

6V 0.5A 500MA ac dc power adapter





6V0.5A ac dc power adapter 6V0.5A ac dc power adapter
6V0.5A ac dc power adapter 6V0.5A ac dc power adapter
6V0 500MA ac dc power adapter Protection,Over-voltage Protection,Over-current Protection,Short Circuit Protection.6V 500MA AC-DC Adapter meets EU CoC V5 and US DoE VI energy efficiency standards



AC-DC Adapter 6V500MA AC-DC Adapter Dc Power Jack: (On request)



DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

AC-DC Adapter 6V500MA AC-DC Adapter Product Description :



[Model]:ABT005060
[Brand]:ABT
[power]:3W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 6V 0.5A
[Color]:White / Black(On request)
[Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.

AC-DC Adapter 6V0.5A AC-DC Adapter Product Parameters :



[6V500MA AC-DC Adapter Size]: 62*39*26mm
[6V0.5A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
           Short Circuit Protection.
[6V0500MA AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
        40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
        Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
        MTBF: According to MIL-HDBK-217F Standard, Full Load,
        25 ℃, More Than 50000 Hours.

AC-DC Adapter 6V500MA AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
6V0.5A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 6V500MA AC-DC Adapter Application:



6V 500MA AC/DC Adaptor for digital photo frame
100-240V AC to DC 6V 500MA CCTV Cam Power adapter
LED Lights 6V0.5A AC-DC Adapter Power Supply
HDD Enclosure 6V0.5A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
6V 500MA DC/AC CCTV Camera Power Supply Switch Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 6V 500MA AC-DC Adapter Power Supply
6V0.5A power adapter wall mount type with FCC,CB,CE,LVD

AC-DC Adapter More shapes



AC/DC ADAPTER AC/DC ADAPTER
EU AC plug
UK AC plug
AC/DC ADAPTER AC/DC ADAPTER
AU AC plug
US AC plug
AC/DC ADAPTER AC/DC ADAPTER
Exchangeable AC Plug
Interchangeable AC plug
