    Home >> products >> AC-DC Power Adapter >>5V0.5A AC-DC Power Adapter

5V500MA ac dc power adapter





5V0.5A ac dc power adapter 5V0.5A ac dc power adapter
5V0.5A ac dc power adapter 5V0.5A ac dc power adapter
5V0.5A ac dc power adapter 5V0.5A ac dc power adapter
5V0.5A ac dc power adapter constant voltage output,2.5W 5V0.5A ac dc power adapter meets energy efficiency level VI standard



AC-DC Adapter 5V0.5A AC-DC Adapter Dc Power Jack: (On request)



DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

DC PlugDC PlugDC PlugDC PlugDC PlugDC Plug

AC-DC Adapter 5V500MA AC-DC Adapter Product Description :



[Model]:ABT005050
[Brand]:ABT
[power]:2.5W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 5V 0.5A
[Color]:White / Black(On request)
[Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
        Meet all related safety standard,Ultra low no-load/standby power consumption,
        meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
        with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.

AC-DC Adapter 5V/0.5A AC-DC Adapter Product Parameters :



[5V500MA AC-DC Adapter Size]: ① 62*39*26mm ② 40.5*32*21mm
[5V0.5A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
        Short Circuit Protection.
[5V0.5A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
        40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
        Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
        MTBF: According to MIL-HDBK-217F Standard, Full Load,
        25 ℃, More Than 50000 Hours.

AC-DC Adapter 5V/0.5A AC-DC Adapter Product Features :



Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price. Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard. Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
5V/0.5A Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature. Humanity Directed Power Working Status.

AC-DC Adapter 5V/0.5A AC-DC Adapter Application:



5V 500MA AC/DC Adaptor for digital photo frame
100-240V AC to DC 5V 500MA CCTV Cam Power adapter
LED Lights 5V/0.5A AC-DC Adapter Power Supply
HDD Enclosure 5V/0.5A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
5V 0.5A DC/AC CCTV Camera Power Supply Switch Adapter
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 5V/0.5A AC-DC Adapter Power Supply
5V/0.5A power adapter wall mount type with UL,CEC,FCC,BSMI,CB,CE,LVD,TUV,C-TICK,3C

AC-DC Adapter More shapes



AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER
Shell 2
Shell 2
AC/DC ADAPTER AC/DC ADAPTER

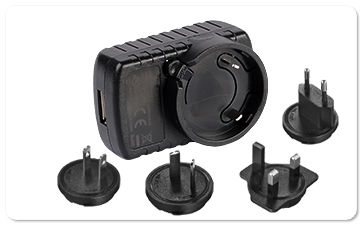

Exchangeable AC Plug
Desktop power adapter
